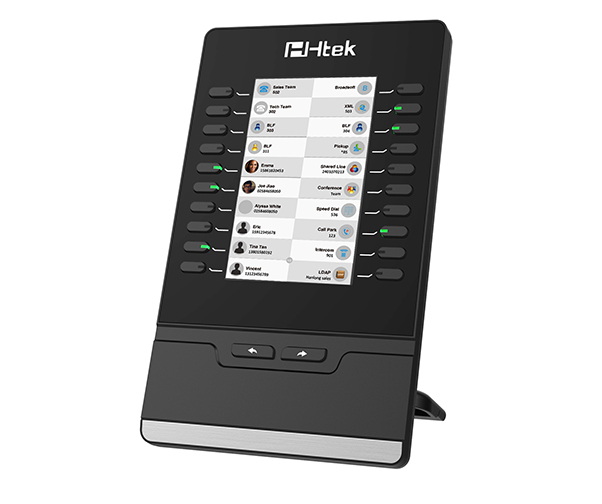

HTEK UC46

Expansion Module

UC46 is expansion module for Color IP Phones. It expands the functional capability of your VoIP phone to a whole new level. Two page views allow 40 programmable keys that work as BLF, Speed dail, call park, pick up…

UC46 Features

  • Large 800*480 color graphic LCD
  • Daisy-chain 6 modules for up to 240 DSS Keys
  • Rich features, each with different Icon
  • 20 programmbale Keys Each with a dual-color LED
  • 2 control keys for fast switch pages

General Features

  • Call hold, Call park, pick up
  • Caller ID display, DND, Conference
  • BLF, Shared line, private hold, public hold...
  • Redial, Call Return, Forward, Call transfer
  • Speed dial, Voicemail, Message

Interface

  • Dual-port Gigabit Ethernet
  • 1xRJ9 (4P4C) handset port
  • Power over Ethernet (IEEE 802.3af), class 2

Physical Features

  • 5.0”TFT-LCD, 800*480 pixel
  • 2 contral keys
  • Supports up to 6 modules daisy-chain
  • Adapter Input: 100-240V
  • 20 programmable keys with dual color LED
  • 2 RJ45 ports(1 uplink,1 downlink)
  • Adapter output: 5V/1.2A

Certificates

  • CE FCC RoHS...

Packing

  • Qty/CTN: 10 PCS
  • N.W/CTN: 7.2 KG
  • G.W/CTN: 8.2 KG
  • Expansion Module Size:131MM(L)*220MM(W)
  • Box Size:235MM(L)*135MM(W)*96MM(H)
  • Carton Meas: 525MM(L)*255MM(W)*305MM(H)
